Cost-effective
Zound sells direct from factory to business, making extra room in the budget without compromising quality
made of recycled carbon polymer panels No Wood or Glue: Recycled materials about ≥180kg (12m²/0.66m³) each Formaldehyde Free: Grade B Fire Retardant, Waterproof
Modular Design 1 Fastener Locking 3 Hour Assemble 6 Side Installation Easy install with instructions.
Aerospace-grade aluminum Anti-Fouling: Easy to clean, not easy to leave hard-to-wipe stains. Anti-Oxidation: extremely resistant to corrosion, crucial in maintaining the safety and usage life of silence booth structure for long term.
STC 30dB (±5dB) & RT0.25s (±0.1s) Maintaining a environment that is good for employees to concentrate on working, thinking, reading is vital for open offices.

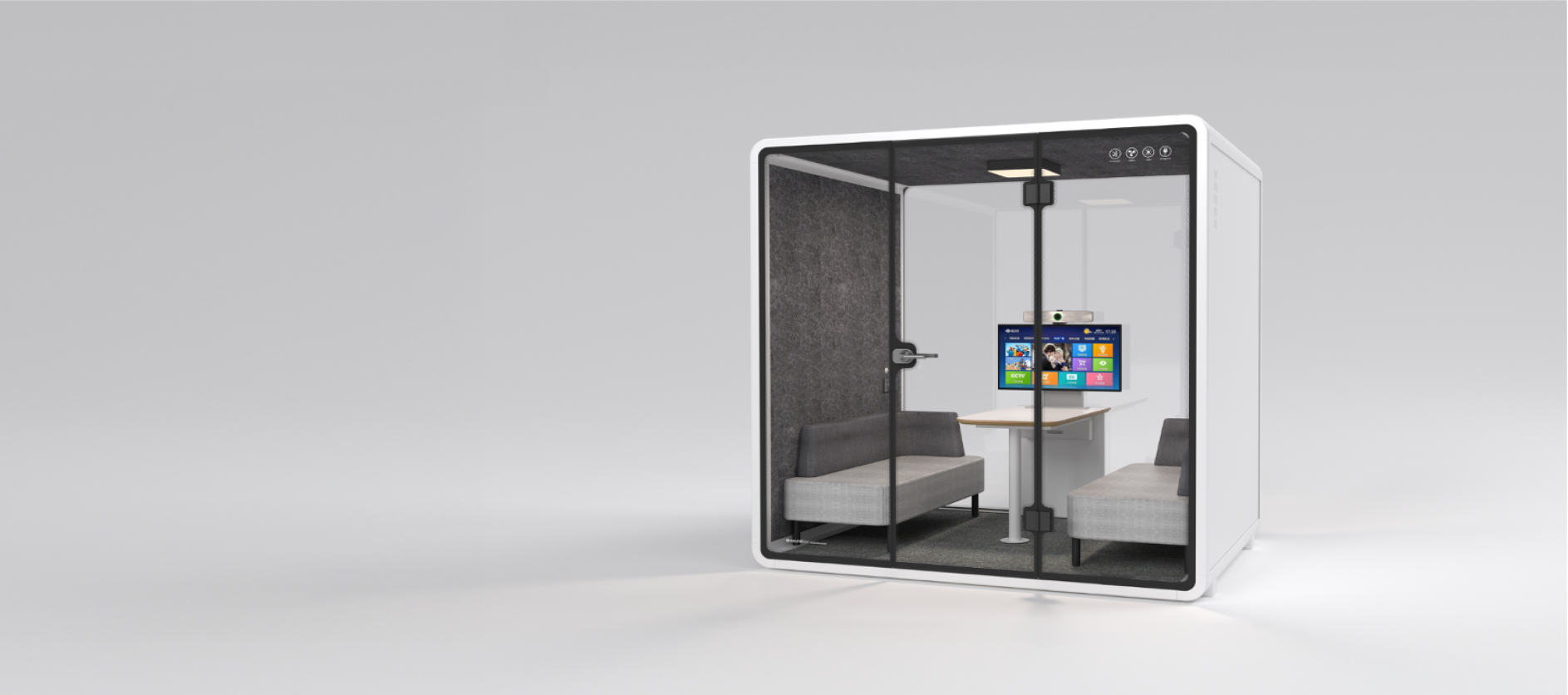

Dimension (m) : W2.2 x D1.536 x H2.3 (Weight 450 Kg.)
Special Material :
- Recycled carbon polymer
- Aerospace-grade aluminum frame
- Acoustic polyester Fiber

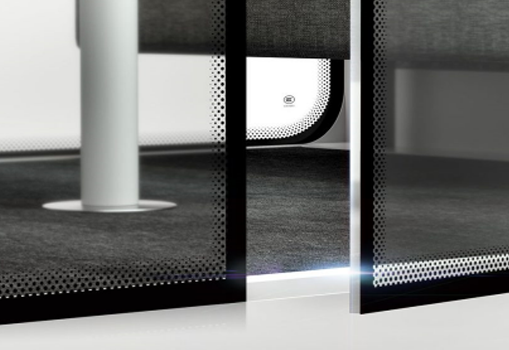

- Tempered glasses
Qty : For 4 People
USB 3.0 : 2 channel
Sound reduce volume : 30dB
Socket (Rated voltage 100-240V) : 2

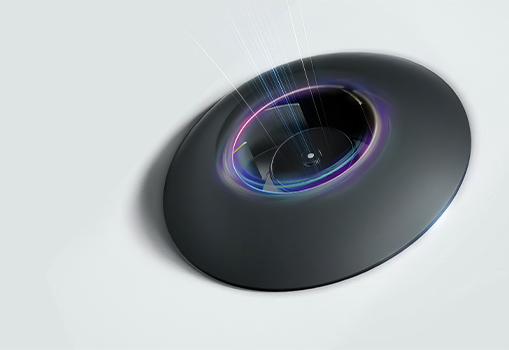

Exhaust system : 2 turbo fans
Power consumption : 71W
Circulating air volume : 250m3/h
Motion sensor : Included
Formaldehyde : I ≤ 0.08(mg/m3)
TVOC : I ≤0.5(mg/m3)
Benzene : Not detected
LED Light : 4000K square lamp + LED Ambient Light
Furniture : Table and chair
Color Option : Black, White, Grey, Green, Orange
Smart Lock : optional
Conference : optional
Air conditioner : optional
In our designing process, we fully utilize acoustic simulation software such as INSUL MARSHALL ACOUSTIC to iterate and obtain optimal acoustic performance. Our booth is consistent with the standard of environmental rating Design value: Rw+Ctr 25 db (+5 db) and
In our designing process, we fully utilize acoustic simulation software such as INSUL MARSHALL ACOUSTIC to iterate and obtain optimal acoustic performance.

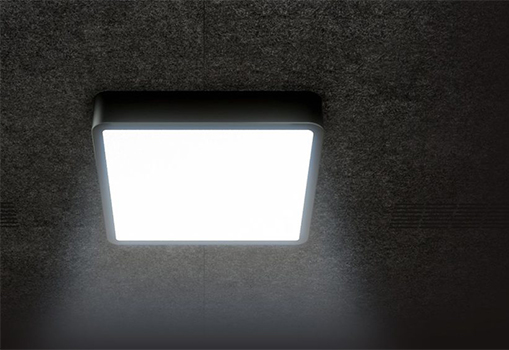

Equipped with 4000 K daylight color temperature LED lighting system (150 LX), it would satisfy the needs of normal activities. In the event of additional power requirements, a backup power supply is readily installed inside the booth.

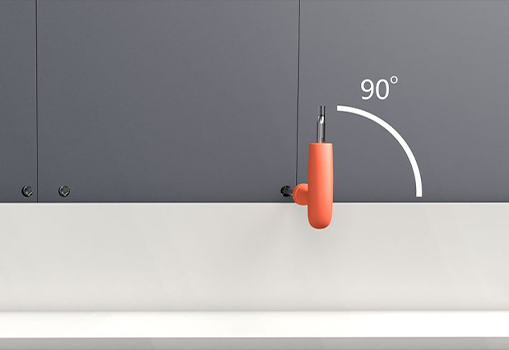

Our design philosophy has always emphasized on simplicity and minimalistic approach. Hence our whole model only utilizes 90-degree fasteners.
Zound sells direct from factory to business, making extra room in the budget without compromising quality
Unlike traditional constructions, our purpose-built Pods were designed to adapt to your workspace and can easily be positioned in various places throughout your office, or in an entirely new location.
Thoughtful design ensures simple installation in a few hours or less. Either installed by our team of fully insured proffesionals or install via in house guided by clear instructions and online videos.
